The Ultimate Guide to Solar Farm Perimeter Fencing

With the acceleration of the global transition to green energy,asset security and operational continuity for large-scale ground-mounted photovoltaic(PV)power plants have become paramount.A professional perimeter fence serves as the first and most critical physical line of defense for this"green bank."It is designed not only to prevent theft(of PV panels,cables,inverters),vandalism,and unauthorized entry but also to meet insurance requirements and mitigate liability risks.This article serves as the ultimate guide for project decision-makers(owners,EPC contractors,engineers),systematically explaining how to select the safest,most economical,and most compliant fencing system for your solar farm.

Key Requirements and Industry Standards for Solar Farm Fencing

Solar farm fencing is far from ordinary site fencing;its design must meet rigorous demands:

Security Level:It must possess sufficient resistance to destroy,defending against common intrusion methods such as bolt cutter shearing and climbing.Designs often reference relevant standards like"GB 50348-2018 Technical Standards for Security Engineering,"which specify requirements for the fence's sturdiness,height,and top structure.

Insurance and Regulatory Compliance:The vast majority of insurance companies set clear terms for station fencing,such as minimum height(usually≥2.2 meters),foundation depth,and material specifications.Meeting these requirements is a prerequisite for obtaining insurance and passing project acceptance.

Environmental Durability:As power stations are typically located in harsh outdoor environments,the fence must possess strong corrosion and UV resistance,ensuring structural integrity throughout the plant's 25-year operational lifespan and reducing maintenance costs.

Detailed Comparison of Mainstream Fencing Materials and Technologies

Selecting the right material is core to the decision-making process.Below is a comparison of the two most mainstream fencing solutions for solar farms:

1.Chain Link Fencing-An Economical and Practical Basic Choice

Advantages:Cost-effective,quick and easy installation,excellent visibility for monitoring,and strong adaptability to terrain.

Disadvantages:Relatively weaker resistance to shear force;often requires supplementary top enhancements like barbed wire or barbed tape for improved security.

Recommended Specifications:Mesh opening no larger than 60mm x 60mm,wire diameter not less than 5.0mm,surface treatment should be hot-dip galvanizing+PVC coating to ensure corrosion resistance.

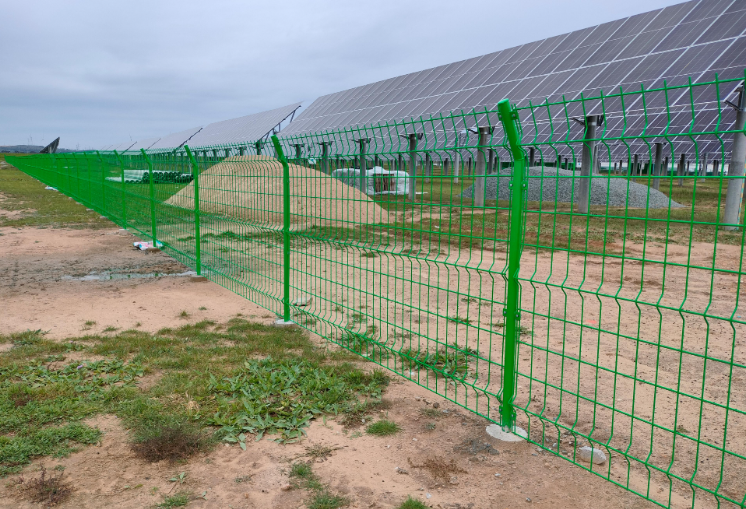

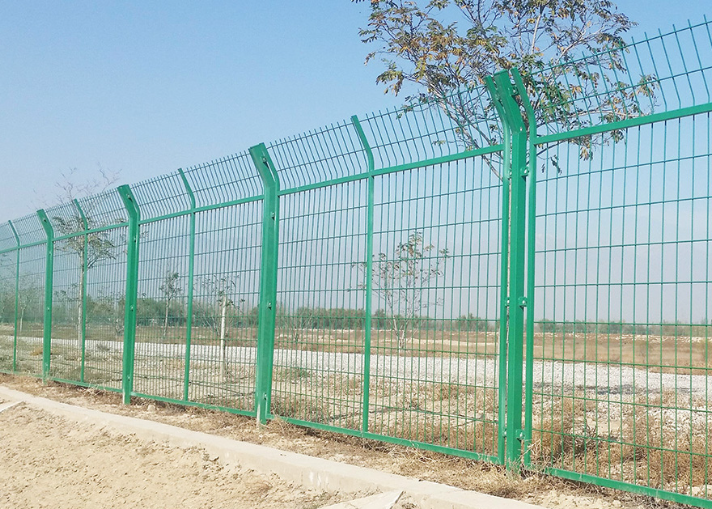

2.Welded Mesh/Steel Mesh Fencing-A High-Security Solution

Advantages:Constructed from high-strength steel wires welded crosswise,making it structurally robust,difficult to cut or climb,offering a significantly higher security level than chain link fencing.

Disadvantages:Higher cost,heavier weight,and slightly less open visibility compared to chain link.

Recommended Specifications:Utilize a"framed"structure.Common mesh openings are 50mm x 100mm or 50mm x 200mm,with wire diameter typically not less than 5.5mm.

3.Top Enhancement Solutions:Barbed Tape/Barbed Wire

Regardless of the primary fence type chosen,adding barbed tape(e.g.,models BTO-22,BTO-30)or barbed wire to the top can significantly enhance anti-climbing capability and deterrent effect.This is a highly cost-effective way to enhance the overall security level.

Five Key Considerations When Choosing a Solar Farm Fencing System

Beyond the material itself,the following factors are equally critical:

Project Risk Assessment:The security situation of the power plant's location is the primary consideration.

Total Cost of Ownership:Consider not just the procurement cost,but also installation,transportation,and maintenance costs over the 25-year lifespan.

Topography and Geology:Rugged terrain requires fences with better flexibility;soft soil necessitates deeper and more robust foundations.

Gates and Access Points:Gates for maintenance vehicle access must be equally robust and equipped with reliable locking systems.

System Integration:Consider whether provisions are made for future integration with video surveillance,intrusion detection systems,and other security measures.
