Chain Link Fence / Diamond Mesh Fence

Basic Info

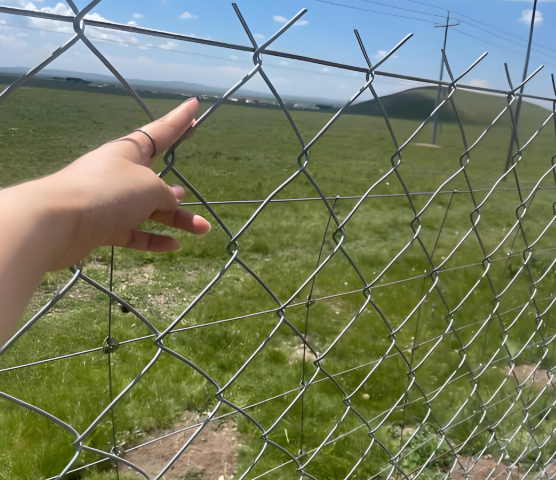

Chain Link Fence is made from pre-bent metal wires hooked together to form a diamond-shaped mesh. It offers exceptional elasticity and impact resistance, an attractive appearance, and excellent anti-climbing properties.

Key attributes

Transportation method

logistics transportation

Whether to import

no

Origin

China

Color

selectable

Specification

customizable

Processing Customization

Support

Material

steel

Surface Treatment

Electro-galvanized, Hot-dip galvanized, Powder coated, PVC/PE coated

Mesh Shape

Diamond (Rhombus)

Weaving Method

Hooked and woven

Frame

Optional

Post

Round tube, Square tube, Peach-shaped post (for tensioning)

Customer reviews

Sophia Garcia · Farm Operations Director

We use the double-circle fence to divide the breeding areas on our farm. The double-circle design is more effective in preventing livestock from rushing than ordinary fences, and the fence surface also has good elasticity. After using it for more than three months, the fence remains intact without wire breakage, whether exposed to sunlight or rubbed by livestock. It is very helpful for the partition management of the farm.

Emma Wilson · Factory Safety Supervisor

The equipment area of our factory needs safety isolation. This frame fence is very flexible in assembly and can be adjusted according to the size of our site. After use, the potential safety hazards in the equipment area have been greatly reduced. In addition, the fence surface is smooth without burrs, so we don't have to worry about employees being accidentally scratched. It is quite good in both practicality and safety.

Michael Brown · Municipal Project Specialist

We chose this double-sided wire fence for the green belt protection beside the municipal road. Its color coordinates well with the surrounding environment and does not look obtrusive. After daily contact with pedestrians and vehicles, the fence has no loosening or deformation. It is also easy to clean - just rinse it with water to remove surface dust, so the maintenance cost is very low.

Product Description

Product Characteristics:

The mesh is soft and highly elastic,effectively buffering impacts from balls or collisions,protecting athlete safety.All components are corrosion-treated for long outdoor life.Assembled design with no welding points makes transportation easy and installation quick.The mesh is flat and taut,resisting deformation.Colors are often green,blending with the environment without obstructing views.The diamond mesh design discourages climbing.

Product Specifications:

Mesh sizes range from 20mm to 150mm;45mm and 50mm are common for sports.Wire diameter(core wire)is 1.8mm-4.0mm;after coating,it reaches 3.0mm-6.0mm.Coating thickness is typically 0.4mm-1.2mm.It can be used alone or with a frame and posts for a sturdier system.Posts use tension bands or wire ties for connection.

Product Applications:

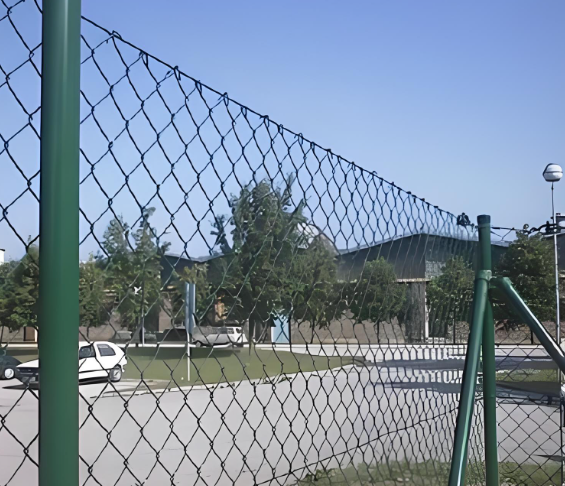

Widely used for various outdoor sports venues(basketball,tennis,soccer,football fields,athletics tracks,golf driving ranges).It isolates playing areas from spectators,prevents balls from causing injury,and defines playing boundaries.It is a essential component of standard sports facilities.
