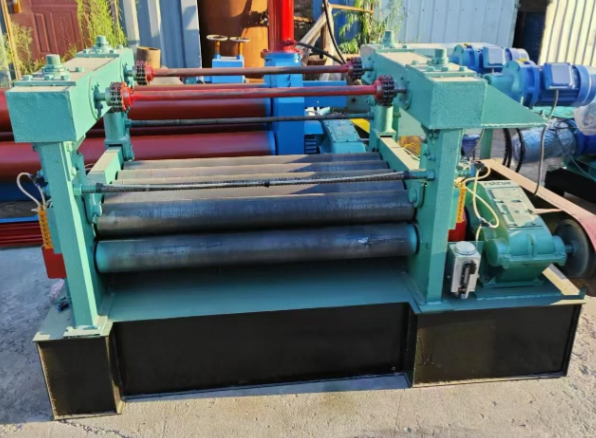

The Plate Straightening Machine is renowned for its high precision and durability.It utilizes a CNC control system,allowing users to preset straightening parameters for automated adjustment,minimizing manual intervention.The machine is equipped with multiple sets of high-strength alloy steel straightening rolls,whose surfaces are hardened for superior wear resistance and a service life exceeding 10,000 hours.During operation,the pressure automatically adjusts according to plate thickness,ensuring even force distribution and preventing over-straightening or under-straightening.Safety features include overload protection,emergency stop buttons,and protective covers,complying with ISO safety standards.Furthermore,its modular design facilitates maintenance,and the automatic lubrication system reduces friction and wear.The machine operates smoothly with noise levels below 75 dB,making it suitable for high-intensity continuous operation.The overall structure,welded from high-strength steel,offers strong resistance to deformation.It is capable of processing plates up to 50 mm thick,achieving a flatness tolerance within±0.1 mm after straightening,significantly enhancing product quality.
The technical specifications of the Plate Straightening Machine cover multiple aspects:the maximum straightening thickness is 50 mm,the maximum width is 2000 mm,and the straightening speed is adjustable from 0 to 10 m/min to suit different production paces.The motor power is 75 kW,providing stable torque,with a power requirement of 380V/50Hz,compatible with standard industrial grids.The machine dimensions are 6000 mm×2000 mm×1500 mm,with a weight of 5000 kg,requiring a solid foundation for installation.In terms of accuracy,the flatness tolerance is±0.1 mm,and straightness tolerance is±0.05 mm/m.It typically features 9-11 straightening rolls,with a roll diameter of 200 mm,made from alloy steel and a surface hardness of HRC 60.The control unit includes a PLC and a touchscreen interface,supporting multi-language programming and data storage.For environmental adaptability,the operating temperature range is-10°C to 40°C,with a humidity limit of 80%.Optional accessories include automatic feeding systems and online inspection instruments to further extend functionality.
The Plate Straightening Machine is widely used in the metal processing industry.In automotive manufacturing,it straightens body panels and chassis components to ensure dimensional accuracy and safety.In shipbuilding,it straightens hull plates to improve structural strength and welding quality.Applications in the construction sector include straightening structural steel beams and floor plates to guarantee building stability and aesthetics.Additionally,the home appliance industry(e.g.,refrigerator,washing machine casings)and the aerospace industry(e.g.,aircraft skins)rely on this machine for processing aluminum alloy and stainless steel plates.It is suitable for various materials,including carbon steel(Q235),stainless steel(304 series),and aluminum.The straightened products are used in subsequent processes like stamping,cutting,and welding.Its high efficiency and consistency help users reduce scrap rates and increase production capacity,playing a vital role in heavy industry and precision manufacturing.
