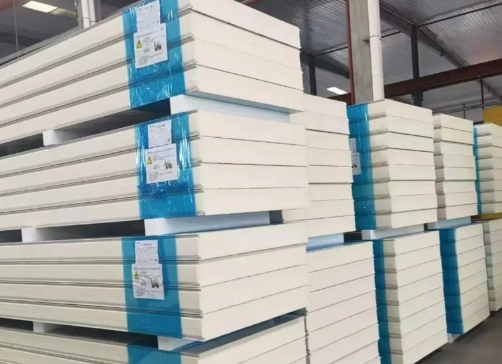

Achieves"one panel,two uses"through structural design,optimizing chamber structure and construction cost.Uses efficient PU core at the high-low temperature junction for critical insulation;uses economical EPS core in non-critical areas of the low-temperature zone.Panel edges feature special air-tight and thermal break structures to prevent condensation and cold leakage.Easy to install with good integrity.

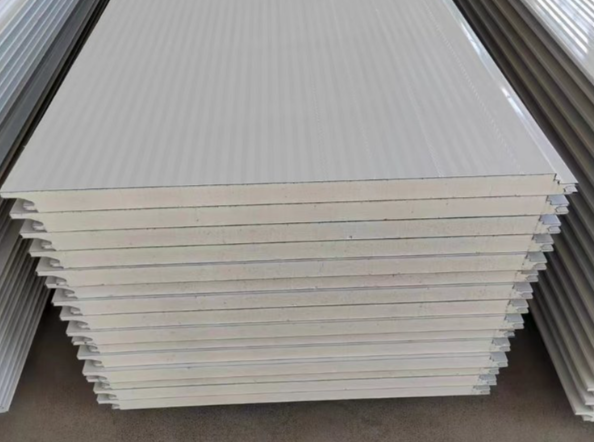

Faces are standard cold storage panel color steel sheets.The core is a combination of PU and EPS,with thickness and distribution determined by engineering calculation.Total thickness is typically 100mm,150mm.Panel width is standard module.Panel edges usually feature dual gaskets and special locking mechanisms for air tightness and strength at joints.
Mainly used for partition walls between different temperature zones in large logistics cold stores and distribution centers,e.g.,separating chill(0~4℃)from freeze(-18℃and below)rooms,or anterooms from low-temperature stores.A cost-effective solution for specific needs in cold storage construction.
