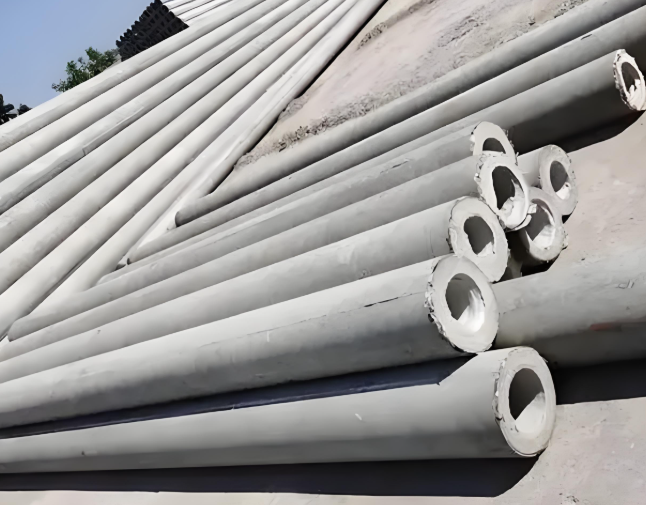

Ø130×7m Prestressed Concrete Utility Pole

Basic Info

A transitional pole type between 6m and 8m poles, providing a more flexible height option for low-voltage power distribution and lighting, balancing cost and lighting range.

Key attributes

Feature

stable

Application Scenarios

outdoors

Function

building materials

Appearance

hollow block

Shape

strip

Product

utility pole

Color

slate gray

Tip diameter

130mm

Pole length

7m

Concrete strength

C50

Weight

~240kg

Reinforcement type

Steel wire for prestressed concrete

Customer reviews

David Wilson · Infrastructure Procurement Supervisor of a Large Agricultural Group

Our farm needs to build an independent power supply line. After comparing multiple suppliers, we chose your company's concrete utility poles. During installation, the workers reported that the poles have uniform weight, making the hoisting process very stable. Moreover, the smooth surface of the poles without burrs avoids potential safety hazards during installation. After one year of use, the poles show no signs of rust in the humid farm environment, and they offer great cost-effectiveness.

Amanda Lopez · Overseas Project Engineer of an International Energy Construction Company

In an overseas power grid project in a remote area, we faced challenges such as long transportation distances and limited on-site construction conditions. Your company's concrete poles are packaged in a modular way, which effectively reduces transportation losses. Additionally, the pre-drilled wiring hole positions on the poles are accurate, eliminating the need for additional drilling on-site. This greatly shortened the construction time and helped us successfully meet the project deadline.

Jake Miller · Project Director of a Multinational Power Engineering Company

Our project involves building a power transmission line in a remote area, which has extremely high requirements for the wind resistance and corrosion resistance of concrete utility poles. After using your company's products, the poles have withstood over half a year of wind and rain without cracking or tilting. They also have good compatibility with accessories during installation, increasing the construction efficiency by 30% compared to expectations. We will give priority to your company's products for similar projects in the future.

Product Description

Product Features:

Inherits all the advantages of prestressed concrete utility poles, including excellent crack resistance, durability, and cost-effectiveness. The 7m height enables a wider lighting range than 6m poles, solving the problem that 6m poles are slightly short while 8m poles are relatively expensive in some scenarios, providing an "intermediate" optimal solution.

Product Specifications:

The tip diameter is 130mm, and the root diameter is approximately 247mm. The concrete strength reaches C50. Its reinforcement scheme is slightly stronger than that of 6m poles to bear the additional bending moment caused by the increased height. The mechanical properties fully meet the requirements of national standards for the corresponding bending moment grade.

Product Applications:

Widely used in rural road lighting, street lamps for internal roads in residential areas, factory monitoring poles, and straight sections of low-voltage distribution lines that require slightly higher erection height. It is a cost-effective choice in rural lighting projects and low-voltage power grid transformation.
