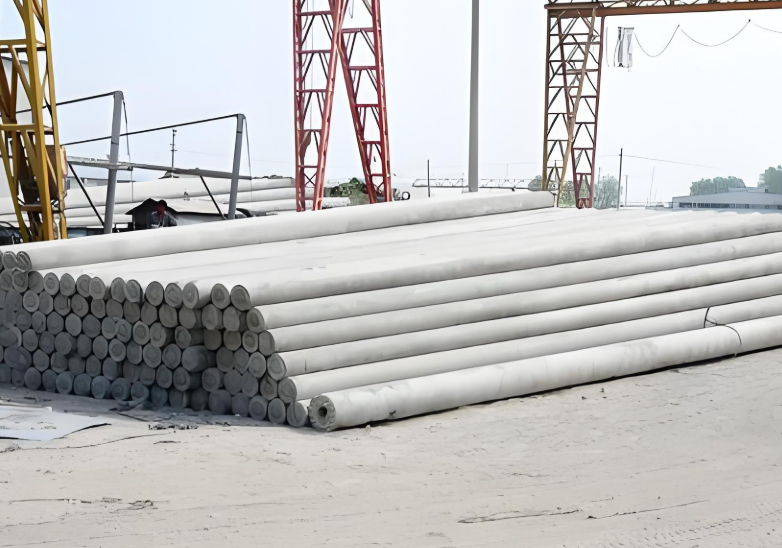

Ø130×8m Prestressed Concrete Utility Pole

Basic Info

A standard main pole type for low-voltage power distribution and street lamps. With moderate height and good lighting coverage, it is one of the most common models in urban lighting projects.

Key attributes

Feature

stable

Application Scenarios

outdoors

Function

building materials

Appearance

hollow block

Shape

strip

Product

utility pole

Color

slate gray

Tip diameter

130mm

Pole length

8m

Taper

1:75

Concrete strength

C50

Weight

~280kg

Customer reviews

David Wilson · Infrastructure Procurement Supervisor of a Large Agricultural Group

Our farm needs to build an independent power supply line. After comparing multiple suppliers, we chose your company's concrete utility poles. During installation, the workers reported that the poles have uniform weight, making the hoisting process very stable. Moreover, the smooth surface of the poles without burrs avoids potential safety hazards during installation. After one year of use, the poles show no signs of rust in the humid farm environment, and they offer great cost-effectiveness.

Amanda Lopez · Overseas Project Engineer of an International Energy Construction Company

In an overseas power grid project in a remote area, we faced challenges such as long transportation distances and limited on-site construction conditions. Your company's concrete poles are packaged in a modular way, which effectively reduces transportation losses. Additionally, the pre-drilled wiring hole positions on the poles are accurate, eliminating the need for additional drilling on-site. This greatly shortened the construction time and helped us successfully meet the project deadline.

Jake Miller · Project Director of a Multinational Power Engineering Company

Our project involves building a power transmission line in a remote area, which has extremely high requirements for the wind resistance and corrosion resistance of concrete utility poles. After using your company's products, the poles have withstood over half a year of wind and rain without cracking or tilting. They also have good compatibility with accessories during installation, increasing the construction efficiency by 30% compared to expectations. We will give priority to your company's products for similar projects in the future.

Product Description

Product Features:

This product is a "benchmark" in the lighting field, with mature technology and stable performance. The 8m height can effectively ensure the coverage range and uniformity of street lamp light, avoiding glare. Its prestressed structure ensures stability under wind load without problems such as concrete cracking.

Product Specifications:

The specification parameters comply with national standards. Steel bars required for flange installation can be pre-embedded at the top of the pole, or holes can be directly reserved to facilitate quick installation and fixation of lamps. Its design fully considers general wind pressure and ice load, with a high safety factor.

Product Applications:

Mainly used in lighting projects for urban branch roads, township main roads, parks, squares, parking lots, etc. It is also commonly used as a support pole for 0.4kV low-voltage distribution lines, communication lines, traffic signals, and surveillance cameras.
