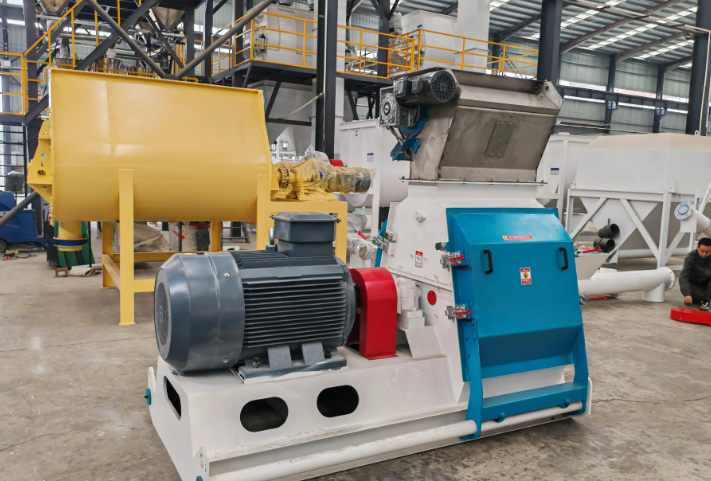

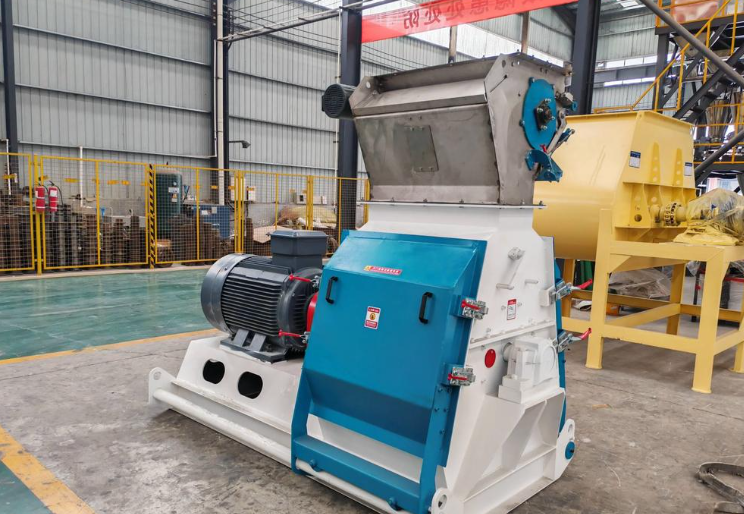

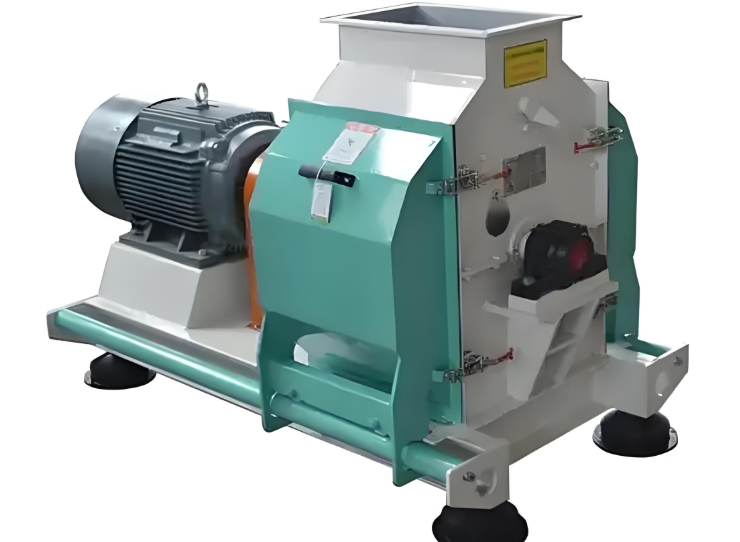

The core feature of the hammer mill is its efficient and versatile grinding capability.It employs symmetrically arranged hammers that can work in both forward and reverse directions,significantly extending the service life of wear parts.Its unique full-circumference screen design increases the screening area,improving throughput and yield.The equipment operates stably with low vibration and noise.Maintenance is very convenient,requiring only regular replacement of hammers and screens.The dynamically balanced rotor ensures smooth operation at high speeds,making it an ideal choice for medium and small feed mills and farms to achieve fine grinding of raw materials.
This machine type comes in various specifications,usually defined by rotor diameter and working chamber width,such as the SFSP series.Power configuration ranges from 22kW to 160kW to meet different production scales.The processing capacity ranges widely from 1 to 20 tons per hour.Standard screen aperture sizes range from 0.8mm to 5.0mm and can be flexibly selected according to the required finished product particle size.The feed inlet is typically designed for tangential feeding and is equipped with a permanent magnet to prevent metal foreign objects from entering and damaging the machine.The machine weight varies by model,ranging from approximately 500 kg to 2000 kg.
Primarily used in the raw material grinding section of compound feed production,for processing grains like corn,wheat,and barley,as well as plant protein materials like soybean meal,cottonseed meal,and rapeseed meal.It is also suitable for grinding coarse fiber feeds such as straw and hay.In premix production,finer aperture screens are required to produce micro-powder raw materials.Its wide adaptability makes it one of the most fundamental and core grinding equipment in industrial feed production.
