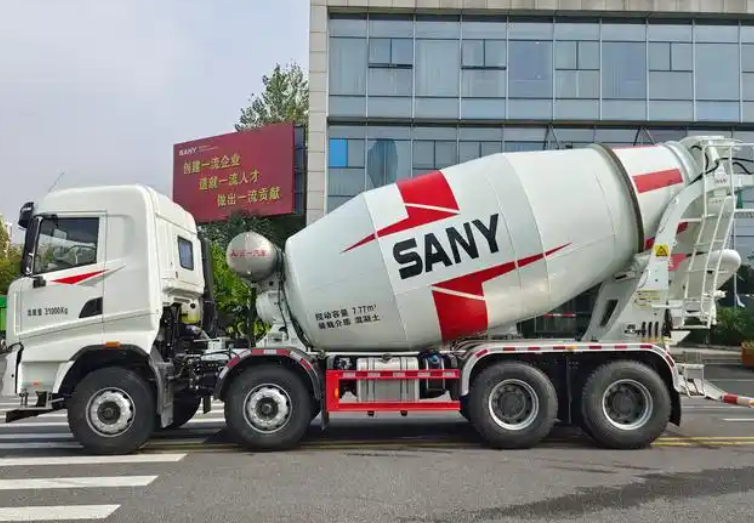

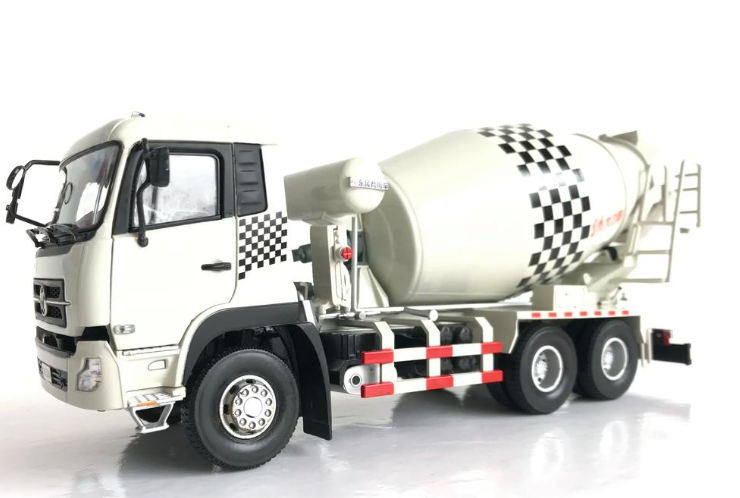

Its core feature is the continuous mixing capability during transit.The large-diameter,low-speed mixer drum,combined with an optimized spiral blade,enables efficient mixing and uniform discharge.The advanced hydraulic drive system provides smooth,stepless speed regulation,ensuring stable drum rotation under various conditions.The built-in water supply system facilitates cleaning during loading,transport,and after discharge.Modern models are equipped with intelligent on-board management systems for real-time monitoring of concrete volume,drum speed,location,and more,enabling digital operation management.
Specifications are defined by geometric capacity(agitating capacity),common sizes being 6m³,8m³,10m³,12m³,etc.Working pressure typically ranges from 28-32 MPa.The drum's tilt angle and rotational speed(approx.6-10 rpm for feeding/mixing,2-4 rpm for agitating transport,12-14 rpm for discharge)are key parameters.Chassis are typically from reputable truck brands,with engine power ranging from 300 to over 500 horsepower.The gross vehicle weight and dimensions must comply with local road regulations.
Widely used in all scenarios requiring the transport of ready-mix concrete from batching plants to construction sites,including urban construction projects like buildings,bridges,roads,and dams.It is an indispensable link in the concrete supply chain,ensuring smooth logistics and stable concrete quality.
