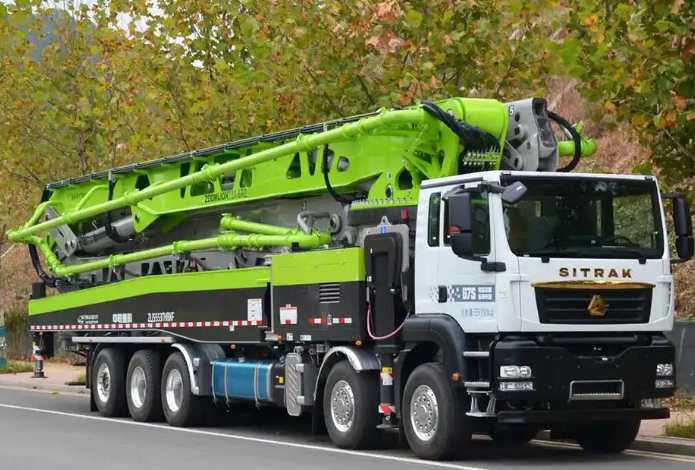

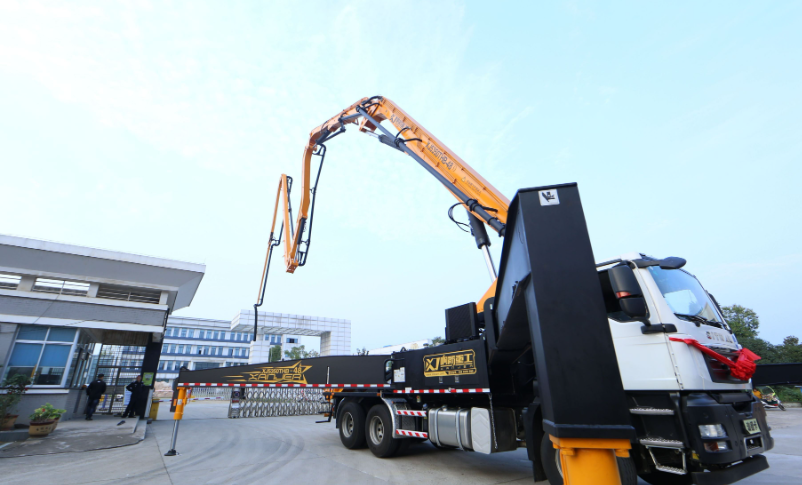

Its most distinctive feature is the multi-articulated,foldable boom,which can be flexibly extended in 3D space to deliver concrete directly to hard-to-reach areas.It employs a closed-loop hydraulic system for smooth,efficient power output and precise control.The S-valve distribution system offers low wear and high resistance to blockages.Advanced electronic control systems integrate remote control,boom anti-collision,and real-time pumping pressure monitoring for safe and convenient operation.A rubber end hose(elephant trunk)allows for final precise placement.
The core specification is the vertical boom height,common models being 37m,42m,52m,56m,62m,or longer.Theoretical pumping output typically ranges from 100 to 200 m³/h.System pressure can be as high as 32 MPa.The chassis is usually a multi-axle heavy-duty specialized chassis for stability.Pipeline diameter is typically 125mm.The equipment includes a powerful cleaning system for post-operation pipeline flushing.
Primarily used for large-scale,high-efficiency concrete pouring in high-rise buildings(residential,commercial),large industrial plants,bridge piers,and hydraulic projects.Its extensive boom coverage effectively reduces the labor required for manual pipe laying,making it an icon of modern industrialized construction.
