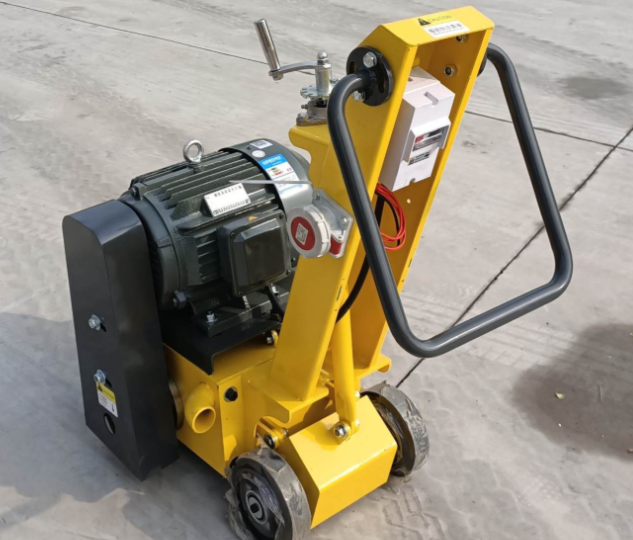

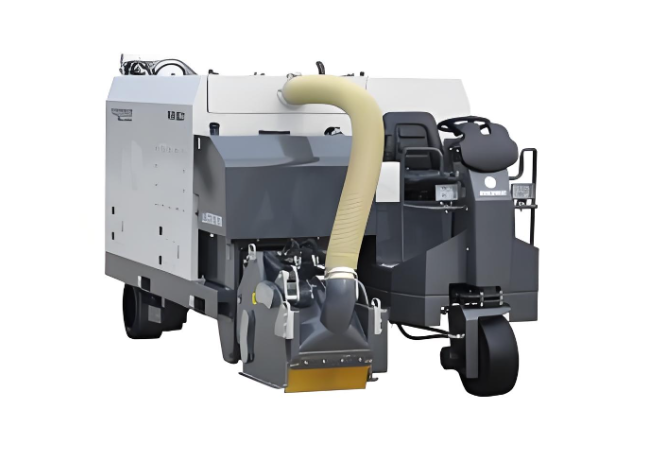

The core component is the milling drum with hundreds of replaceable picks.Precise depth control allows for layer-by-layer removal.Fully hydraulic drive and track propulsion ensure good mobility.An automatic leveling system(following a stringline or laser reference)guarantees the specified pavement profile after milling.An efficient integrated water spray system suppresses dust.Milled material is loaded directly onto trucks via a conveyor.The operator's cabin is designed for excellent visibility and comfort.
Specified by milling width(e.g.,500mm,1m,2m)and engine power(e.g.,100kW,200kW,400kW).Max milling depth can exceed 300mm.Working speed is adjustable based on depth and hardness.Drum speed typically ranges from 0-200 rpm.Machine weight,from several to tens of tons,determines stability and max milling capacity.
Primarily used for the rehabilitation and repair of concrete pavements on highways,city streets,and airport runways.Tasks include removing deteriorated surface layers,preparing surfaces for asphalt overlays,correcting rutting and bumps,and texturing surfaces to improve skid resistance.It is a key machine in major pavement maintenance projects.
