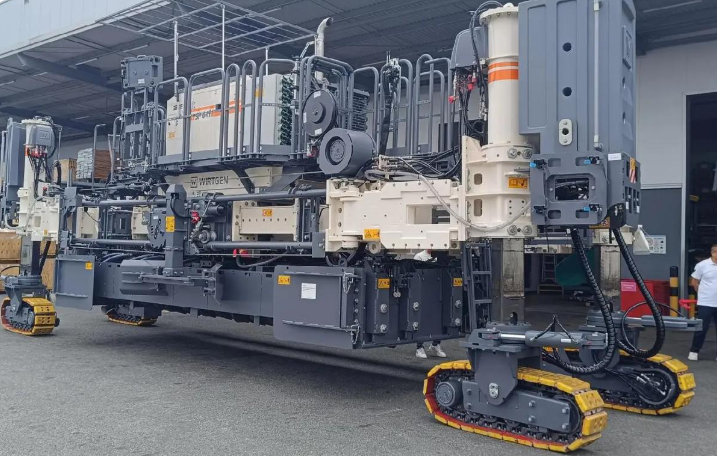

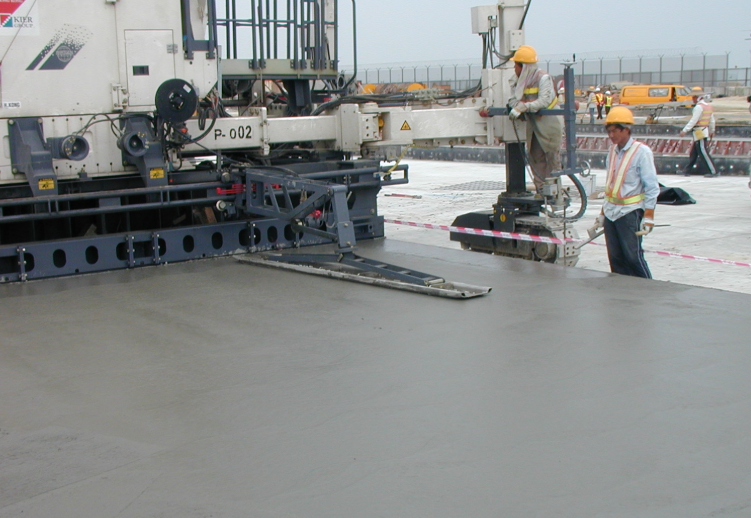

This machine is a marvel of integration.A front auger spreads the concrete evenly.The middle section houses powerful vibrators and a tamping plate for thorough consolidation and pre-forming.The most critical part is the rear slipform,which exerts high-pressure extrusion on the consolidated concrete to form the final pavement profile and smooth surface.Sensors and an automatic leveling system precisely control grade and alignment.Crawler tracks ensure stable forward movement.
Specified by paving width(e.g.,4.5m,8m,12m)and max paving thickness(e.g.,300mm,500mm).Engine power is substantial,typically over 200kW.Paving speed is slow and steady,usually 1-3 m/min.Vibration frequency is very high,up to 8000-12000 vpm.The machine is large,can be over ten meters long,and weighs tens of tons.
Dedicated to the large-scale continuous construction of cement concrete pavements requiring extremely high smoothness,strength,and durability,such as high-grade highways,primary roads,airport runways,and major urban arteries.
